How We Developed A 500 GSM Oversized Hoodie for A US Streetwear Brand (From Sample To Production)

1. Project Overview

This project was developed for a US-based emerging streetwear brand preparing their first winter drop.

The goal was to develop a 500 GSM oversized hoodie that balances:

• Heavyweight structure

• Soft wearable comfort

• Stable shrinkage control

• Durable puff print application

Initial order volume: 300–500 pcs

Key challenge:

Achieving heavyweight feel without making the hoodie too stiff or unstable after washing.

2. Client Requirements

The client provided a reference hoodie and required:

• 500 GSM heavyweight fleece fabric

• Oversized boxy silhouette (drop shoulder)

• Shrinkage control under 3%

• Puff print logo on chest + back

• Vintage streetwear hand feel

3. Fabric Selection & Testing (Critical Stage)

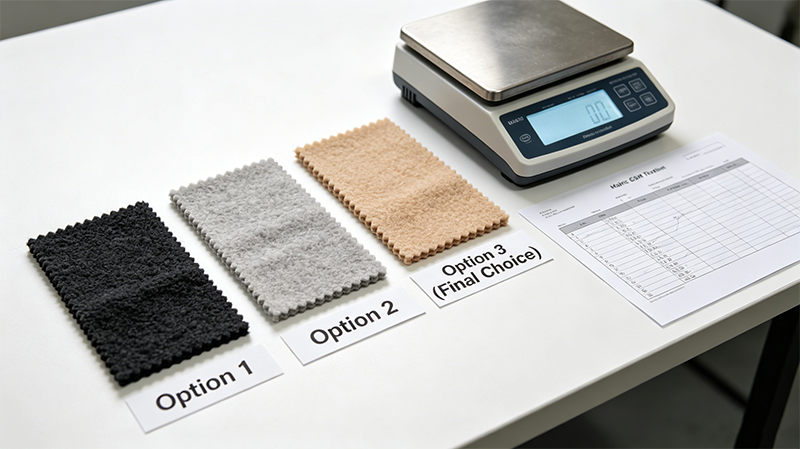

We tested 3 fabric options:

Option 1: 480 GSM French Terry

• Actual measured GSM: 478–482 GSM

• Issue: too soft, lacked structure

• Result: rejected

Option 2: 520 GSM Heavy Brushed Fleece

• Actual GSM: 515–523 GSM

• Issue: too stiff after wash test

• Shrinkage: ~5.4%

Option 3 (Final Choice): 500 GSM Cotton-Poly Fleece

• Actual GSM: 498–505 GSM

• Shrinkage after pre-wash: 2.7%–2.9%

• Result: balanced structure + comfort

Final decision: 500 GSM cotton-poly fleece optimized batch

4. Sampling Process (3 Rounds)

Sample 1 (Initial Version)

• Shoulder width too narrow (-2 cm vs spec)

• Puff print cracked after wash test

• Fabric hand feel too rigid

Result: Rejected

Sample 2 (Adjusted Version)

Changes made:

• Shoulder drop increased by 2.5 cm

• Puff print ink thickness increased by +18%

• Fabric brushing softened

Issues found:

• Slight uneven shrinkage: ~4.1%

• Puff print edge bleeding detected

Result: Partial improvement but not approved

Sample 3 (Final Approved Version)

Final adjustments:

• Pre-shrink process optimized

• Puff print curing temperature reduced by 8°C

• Fabric wash cycle standardized

Final performance:

• Shrinkage: 2.8% average

• Stitch alignment deviation: <2 mm

• Puff print cracking: none after 3 wash tests

Approved for bulk production

5. Production Control System

During mass production, we implemented:

Fabric Control

• GSM tolerance: ±5 GSM

• Batch consistency inspection every 200 meters

Cutting & Sewing

• Pre-shrunk fabric cutting only

• Seam alignment tolerance: ≤2 mm

Printing (Puff Print)

• Curing temperature: 150–155°C

• Thickness consistency control: ±0.2 mm

Wash Testing

• Random batch test: every 100 pcs

• Wash cycle test: 3 cycles per sample batch

6. Key Production Challenge (Important Insight)

The main technical issue was:

Puff print cracking under stretch after washing.

Root cause:

• Over-thick ink application in Sample 1

• Excess curing temperature causing surface brittleness

Solution:

• Reduced ink viscosity by ~12%

• Adjusted curing temperature down by 8°C

• Added flexible binder ratio adjustment



7. Final Result

Final hoodie achieved:

• Stable 500 GSM heavyweight structure

• Oversized streetwear silhouette

• Shrinkage controlled at 2.8%

• No puff print cracking after repeated wash tests

• Consistent fit across 300–500 pcs batch

8. Visual Documentation (Recommended to Add)

To improve trust and EEAT signals, this project should include:

• Fabric GSM test sheet

• Sample 1 / 2 / 3 comparison images

• Puff print close-up detail shots

• Production line photos

• Wash test result images

9. What This Project Demonstrates

This development process shows:

• How fabric selection impacts garment structure

• Why sampling iteration is critical in streetwear production

• How puff print durability is controlled in bulk manufacturing

• How shrinkage can be stabilized under 3% in heavyweight fleece
